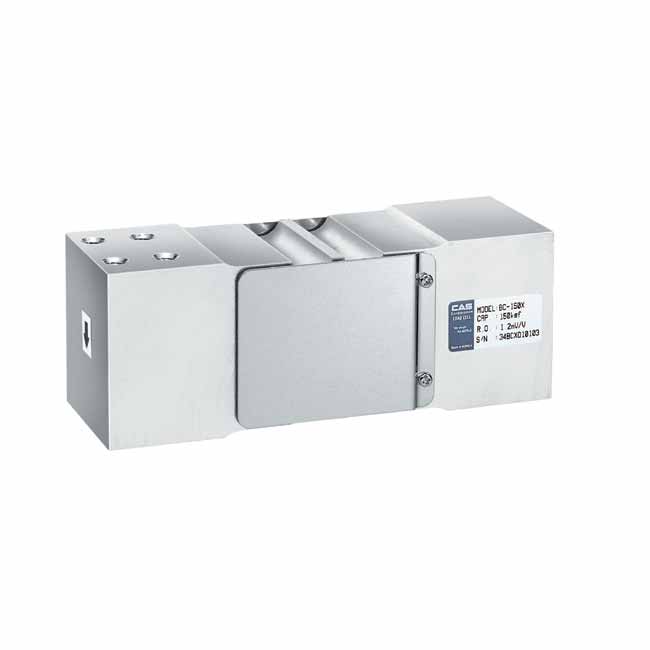

BC-X 제조사카스 모델명BC-X 분류로드셀 용도방수형,IP66 카타로그다운 견적문의 [종 류] 모 델 BC-60X BC-150X BC-300X 최대사용하중 60kg 150kg 300kg 재 질 Anodized aluminum(BC-X) [제품특징] 제조사/제조국 : CAS/KOREA 모델명 : BC-xxX(X:Capacity in kg) Water proof type Off center compensated Protection class IP 66 All stainless steel construction(BC-SS) Socket-head cap screw M8x1.25(10.9) Braided shield 4-wire round cable with PVC-Jacket Maximum Platform Size400 x 600mm(WxL) [제품사양] Max. capacity kgf 60, 150, 300 Rated outputZoro balance mV/ VmV/ V 1.2 ± 10% R.O0 ± 10% R.O Accuracy class C3 (BC-X) Combined errorRepeatabilityCreep for 30min.Temperature effect on Zero Value Output value %%%%/ 10℃%/ 10℃ ＜0.02＜0.01＜0.0170.0140.011 Excitation Recommended MaximumResistance Input Output Insulation VVΩΩMΩ 1015420±20350±3.5＞2,000 Compensated temperature rangeOperating temperature range ℃℃ -10 to +40-20 to +70 [치 수]
)
)
